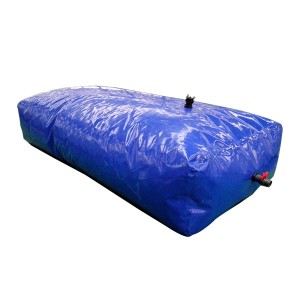

Rectangular Water Tank
Product brief introduction
The speciality of rectangular tank is similar to pillow tank , it is widely used in transportation, farm irrigation, oil exploitation and other related industries . Its capacity is the most accurate , because of its shape. And it needs less material than pillow tank, therefore it’s cost-effective.
It can be used to store industrial water, fire water, rainwater harvesting, irrigation water, concrete mixing water, slope green water, sewage water.
Its advantages are: can be folded when empty, the weight light and easy to transport, on-site installation is simple, long life and low maintenance costs.
Specifications:
Materials: 0.9mm--1.5mm PVC tarpaulin with EN71,ASTM standard
Material: 500L--1000,000L
Technique: heat welding
Feature:
UV resistant / Mildew resistant /Durable and beautiful
The resistance to temperature is very good.within ± 50 ° C will not change the shape and material.
The material main component is polyvinyl chloride, adding antioxidants, non-toxic, molecularly stable, not easy to adhere to dirt, and do not breed bacteria.
Product features
Small folding size , light weight, easy to transport and disassemble quickly , especially suitable for the storage space is not enough or the storage equipment is difficult to enter the site.
The condition of empty loading can fold below 5% of the total volume, saving space for easy storage.
With a strong oil resistance, sealing performance, resistance to ultraviolet aging proof performance.
There are many different kinds of accessories can be choose , meet the needs of the various caliber pump .
Based on the quick coupling, convenient disassembly
Easy to loading and discharge
| Volume in m3 | Expansion dimension (LxW)in m | Fully-loaded height in m | Volume in m3 | Expansion dimension (LxW)in m | Fully-loaded height in m |
| 0.2 | 1.0*0.5 | 0.4 | 30 | 9.0*4.8 | 0.7 |
| 0.5 | 1.5*0.7 | 0.5 | 40 | 10.0*5.0 | 0.8 |
| 1 | 2.0*1.0 | 0.5 | 60 | 10.0*6.0 | 1.0 |
| 2 | 2.5*1.3 | 0.6 | 100 | 10.0*7.2 | 1.4 |
| 5 | 4.0*2.1 | 0.6 | 200 | 14.0*9.0 | 1.6 |
| 10 | 6.0*2.8 | 0.6 | 300 | 17..6*10.0 | 1.7 |
| 20 | 8.0*3.5 | 0.7 | 400 | 19.2*11.6 | 1.8 |
